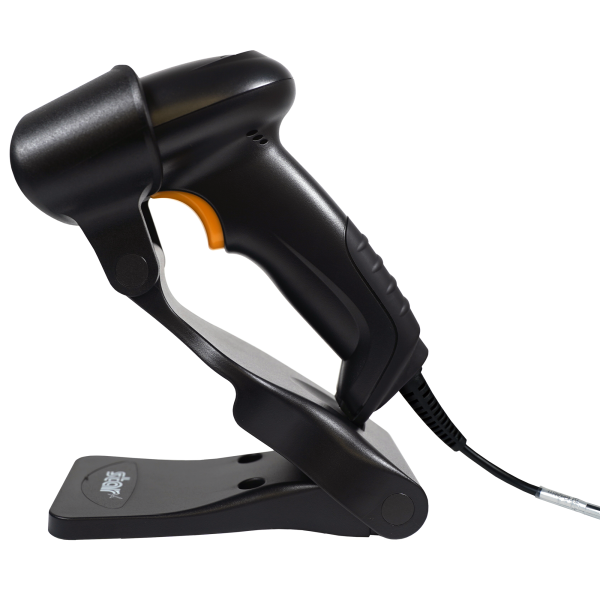

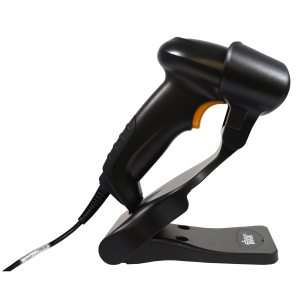

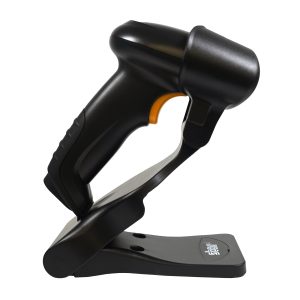

BSH-32U Handheld 1D/2D USB Barcode Scanner
The BSH-32U from Star Micronics is a premium handheld USB barcode scanner that combines high performance with robust durability. Equipped with a powerful CPU and a super high-resolution image sensor, this scanner excels in various environments, including retail stores, bars and restaurants, event venues, and more. It adeptly reads and parses both 1D and 2D barcodes from paper, digital screens, and uneven surfaces, making it ideal for scanning IDs, driver’s licenses, QR codes, and product labels. Available in smooth black and Star-branded, the BSH-32U seamlessly plugs into any point-of-sale (POS) system, including Star Micronics’ mPOS product line, the mCollection®.
The BSH-32U scanner from Star Micronics is a powerhouse equipped with a high-powered CPU and high-resolution CMOS sensor. This scanner effortlessly captures high-density, high-volume, and even distorted barcodes on various media, including paper and screens. Ideal for retail, hospitality, and event venues, its robust performance ensures seamless operations.
With the ability to read and parse both 1D and 2D barcodes, the BSH-32U stands out for its adaptability. It’s particularly effective for reading IDs and driver’s licenses, making it a valuable tool in settings like bars, nightclubs, and cannabis dispensaries where age verification is required.
Seamlessly pair the BSH-32U and all Star barcode scanners with any POS system, including solutions from Star’s mCollection®. A direct plug-and-play capability simplifies setup and enhances the overall POS experience, making any Star scanner a versatile choice for a variety of business models.
The BSH-32U combines functionality with aesthetics. Its ergonomic design ensures comfortable use during long scanning sessions, while its modern look complements any POS setup. Available in smooth black with Star branding, it aligns with the sleek branding expected of a POS industry leader.
StarSCAN, included with all Star Micronics scanners, is a Windows-based Utility compatible with iOS, Android, and Windows platforms. Users can tailor their scanning preferences and configure scanners to specific needs. Developers can further integrate it into applications using the provided SDK.
Designed to withstand the rigors of busy commercial environments, the BSH-32U features an IP42-rated design for resistance against dust and moisture. Its drop-resistant (1.5m) housing ensures durability, providing peace of mind in fast-paced settings such as quick-service restaurants (QSRs) and high-traffic retail areas.
As with all Star Micronics products, the BSH-32U carries the mark of superior quality. Users can rely on its efficient performance and longevity, backed by Star’s rigorous testing and commitment to excellence in POS hardware solutions.
| High-Resolution CMOS | Captures high-density, high-volume, and distorted barcodes on paper or screen |
| High-Performance CPU | Can read and parse barcodes, including IDs and driver’s licenses |
| Customizable Functionality | Allows access to StarSCAN configuration utility to customize scanner functionality |
| POS System Compatibility | Plug directly into any POS system, including Star’s mCollection® products |
| Comfortable and Durable | Ergonomic, IP42-rated design and drop-resistant up to 1.5m |
| Star Quality | Star-tested for superior quality guaranteed |
| Warranty-Protected | BSH-32U wireless handheld barcode scanners come with a 2-year warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR® |
| Five Scanning Modes | Level Mode: The scanner’s trigger will activate the decode session. The decode session continues until a barcode is decoded or you release the trigger.
Sense Mode: The scanner activates a decode session every time it detects a barcode presented to it. Continuous Mode: The scanner automatically starts one decode session after another. Pulse Mode: When the trigger is pulled and released, scanning is activated until a barcode is decoded or the decode session timeout expires. Batch Mode: When the trigger is pulled and released, scanning is activated until the trigger is released. |
| Image Sensor | 1280×800 (megapixel) CMOS |
| Illumination | White LED & Red LED (622 nm-628 nm) |
| Aiming | Green LED (515 nm-535 nm) |
| Symbologies | 2D: PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode. 1D: EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128 |
| Resolution* | ≥3 mil |
| Typical Depth of Field* | EAN-13: 50 mm-495 mm (13 mil) Code39: 85 mm-220 mm (5 mil) PDF417: 70 mm-215 mm (6.7 mil) Data Matrix: 50 mm-220 mm (10 mil) QR Code: 20 mm-325 mm (15 mil) |
| Scan Angle | Pitch: ±55°, Roll: 360°, Skew: ±55° |
| Field of View | Horizontal 39°, Vertical 24° |
| Min Symbol Contrast | 25% |
| Driver’s License Parsing | Can parse according to American Association of Motor Vehicle Administrators (AAMVA) October 2020 Specification. |
| Interface | USB, RS232 |
| Operating Voltage | 5VDC±5% |
| Dimensions (L×W×H) | 113mm x 71mm x 158mm |
| Weight | 156g |
| Colors | Black |
| Notification | Beep, LED |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5%~95% (non-condensing) |
| ESD | ±15 KV (air discharge); ±8 KV (contact discharge) |
| Drop | 1.5 m |
| Sealing | IP42 |
