The BSD-40U is a top-tier 2D desktop barcode scanner, blending high performance with reliable design. It efficiently and accurately reads 1D and 2D barcodes on a variety of surfaces, including paper, uneven media, and digital screens. This scanner’s advanced technology extends to reading and parsing data from IDs and driver’s licenses, making it versatile for age verification and other diverse business needs. It features exceptional motion tolerance and an IR sensor for fast scanning in multiple modes. Sleek and versatile, it’s compatible with all major platforms and plugs directly into any of Star’s mCollection® products.

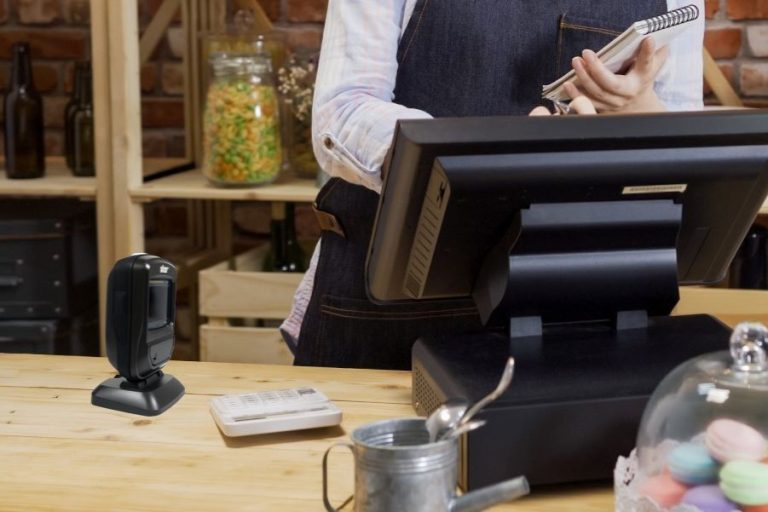

The BSD-40U scanner from Star Micronics is a powerhouse equipped with a high-powered CPU and high-resolution CMOS sensor. This scanner effortlessly captures high-density, high-volume, and even distorted barcodes on various media, including paper and screens. Ideal for busy retail and hospitality environments, its robust performance ensures seamless operations.

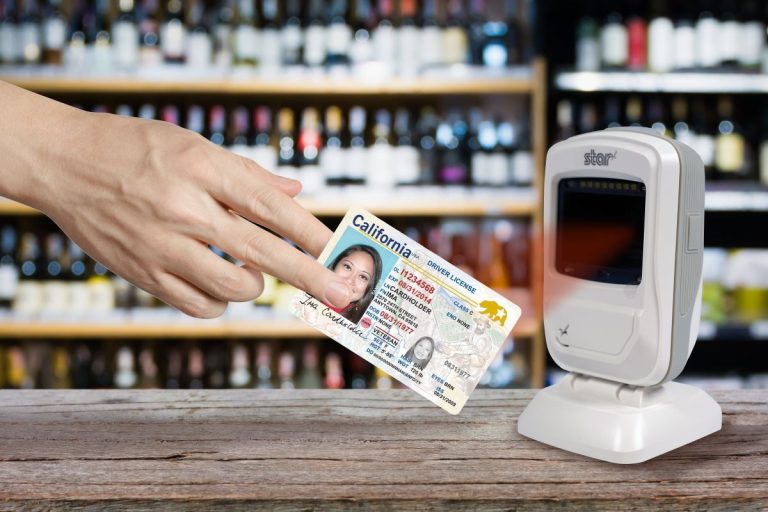

With the ability to read and parse both 1D and 2D barcodes, the BSD-40U stands out for its adaptability. It’s particularly effective for reading IDs and driver’s licenses, making it a valuable tool in settings like bars, nightclubs, and cannabis dispensaries where age verification is required.
Seamlessly pair the BSD-40U and all Star barcode scanners with any POS system, including solutions from Star’s mCollection®. A direct plug-and-play capability simplifies setup and enhances the overall POS experience, making any Star scanner a versatile choice for a variety of business models.
StarSCAN, included with all Star Micronics scanners, is a Windows-based Utility compatible with iOS, Android, and Windows platforms. Users can tailor their scanning preferences and configure scanners to specific needs. Developers can further integrate it into applications using the provided SDK.
Designed to withstand the rigors of busy commercial environments, the BSD-40U features an IP52-rated design for resistance against dust and moisture. Its drop-resistant (1.2m) housing ensures durability, providing peace of mind in fast-paced settings such as quick-service restaurants (QSRs) and high-traffic retail areas.
As with all Star Micronics products, the BSD-40U carries the mark of superior quality. Users can rely on its efficient performance and longevity, backed by Star’s rigorous testing and commitment to excellence in POS hardware solutions.
| High-Resolution CMOS | Captures high-density, high-volume, and distorted barcodes on paper or screen |
| High-Performance CPU | Can read and parse barcodes, including IDs and driver’s licenses |
| Customizable Functionality | Allows access to StarSCAN configuration utility to customize scanner functionality |
| POS System Compatibility | Plug directly into any POS system, including Star’s mCollection® products |
| High Performance | 2.5m/s motion tolerance and large field of view (horizontal 51°, vertical 32°) |
| Durable | IP52-rated design and drop-resistant up to 1.2m |
| Efficient | Quickly toggles between normal mode and high-motion-tolerance mode |
| Warranty-Protected | The BSD-40U desktop barcode scanner comes with a 2-year warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR® |
| Four Scanning Modes | Level Mode: The scanner’s trigger will activate the decode session.
Sense Mode: The scanner activates a decode session every time it detects a barcode presented to it. Continuous Mode: The scanner automatically starts one decode session after another. Pulse Mode: When the trigger is pulled and released, scanning is activated until a barcode is decoded or the decode session timeout expires. |
| Image Sensor | 1280×800 (megapixel) CMOS |
| Illumination | White LED |
| Aiming | Red LED |
| Symbologies | 2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec 1D: Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS) |
| Resolution* | ≥3 mil |
| Typical Depth of Field* | EAN-13: 10 mm-210 mm (13 mil) Code39: 85 mm-220 mm (5 mil) QR Code: 10 mm-180 mm (15 mil) |
| Scan Angle | Pitch: ±50°, Roll: 360°, Skew: ±45° |
| Field of View | Horizontal 51°, Vertical 32° |
| Min Symbol Contrast | 25% |
| Driver’s License Parsing | Can parse according to American Association of Motor Vehicle Administrators (AAMVA) October 2020 Specification. |
| Interface | USB, RS232 |
| Operating Voltage | 5VDC±5% |
| Dimensions (L×W×H) | 82mm x 80mm x 147mm |
| Weight | 297g |
| Colors | Black, White |
| Notification | Beep, LED |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5%~95% (non-condensing) |
| ESD | ±14 KV (air discharge); ±8 KV (contact discharge) |
| Drop | 1.2 m |
| Sealing | IP52 |
